🚀 AWS Global US Accelerator Setup¶
Global Accelerator provides static IP addresses that act as a fixed entry point to your application endpoints in AWS.
📝 AWS Global US Accelerator Setup Summary¶
This document outlines the configuration and validation details for the ATnT US Global Accelerator setup:
- 🌐 Global Accelerator provides static IPs as fixed entry points for AWS application endpoints.
- 🆔 Accelerator ARN:
arn:aws:globalaccelerator::345594589655:accelerator/1f2c3d4e-5678-90ab-cdef-1234567890ab - 🗺️ Regions Covered:
- 🇺🇸 us-east-1
- 🇺🇸 us-west-2
- 🏷️ Endpoints, Subnets, and EIPs:
Tables list subnet IDs and Elastic IP allocations for each region. - 📡 SIM Service Validation:
Shows service ports (9506) and public EIPs for validation in both regions. - 🧪 Packet Testing:
Example hex packet and a link to 🔗 Packet Sender for testing. - 🌍 Accelerator Endpoints:
Lists IPv4 and IPv6 addresses assigned to the accelerator. - 📖 Reference:
🔗 AWS Global Accelerator documentation
This summary provides a quick reference for endpoints, validation, and testing of the ATnT US Global Accelerator
ATnT - US Global Accelerator 🚀
🆔 arn:aws:globalaccelerator::345594589655:accelerator/1f2c3d4e-5678-90ab-cdef-1234567890ab
Regions: - 🇺🇸 us-east-1 - 🇺🇸 us-west-2
🏷️ Endpoints, Subnets, and EIPs by Region¶
| 🌎 Region | 🟦 Subnet 1 | 🟦 Subnet 2 | 🔗 EIP 1 | 🔗 EIP 2 |
|---|---|---|---|---|
| 🇺🇸 us-east-1 | subnet-01dc52b2a888f2d01 | subnet-0d7ebbd25c97b8391 | eipalloc-00efda5c903f392e8 | eipalloc-0f8f1f3bca8e26d33 |
| 🇺🇸 us-west-2 | subnet-0f7f4457009777cb5 | subnet-0cdf7cbbbadd08108 | eipalloc-050a7a0befbfe65a3 | eipalloc-0172515233c00b49e |
📡 SIM Service Validation Test¶
| 🌎 Region | 🔌 Port | 🔗 EIP 1 | 🔗 EIP 2 |
|---|---|---|---|
| 🇺🇸 us-east-1 | 9506 | 3.208.244.237 | 174.129.146.2 |
| 🇺🇸 us-west-2 | 9506 | 52.37.156.158 | 35.161.112.210 |
🧪 Hex Packet Snippet¶
Packets can be sent with 🔗 Packet Sender
02 30 01 00 31 20 20 9f 04 f0 63 6a af 53 92 0d 21 b7 6e df b2 66 74 c9 4d 40 5c 47 dd 83 ec db 59 72 45 45 d6 41 ab 00 f2 06 22 33 55 66 88 99 e1 04 61 74 6e 74 03
🌍 Accelerator Endpoints¶
75.2.108.23
3.33.243.63
2600:9000:a403:180c:6614:11ab:4d5b:1a99
2600:9000:a700:38a5:62e0:1fe9:a8b5:4bc8

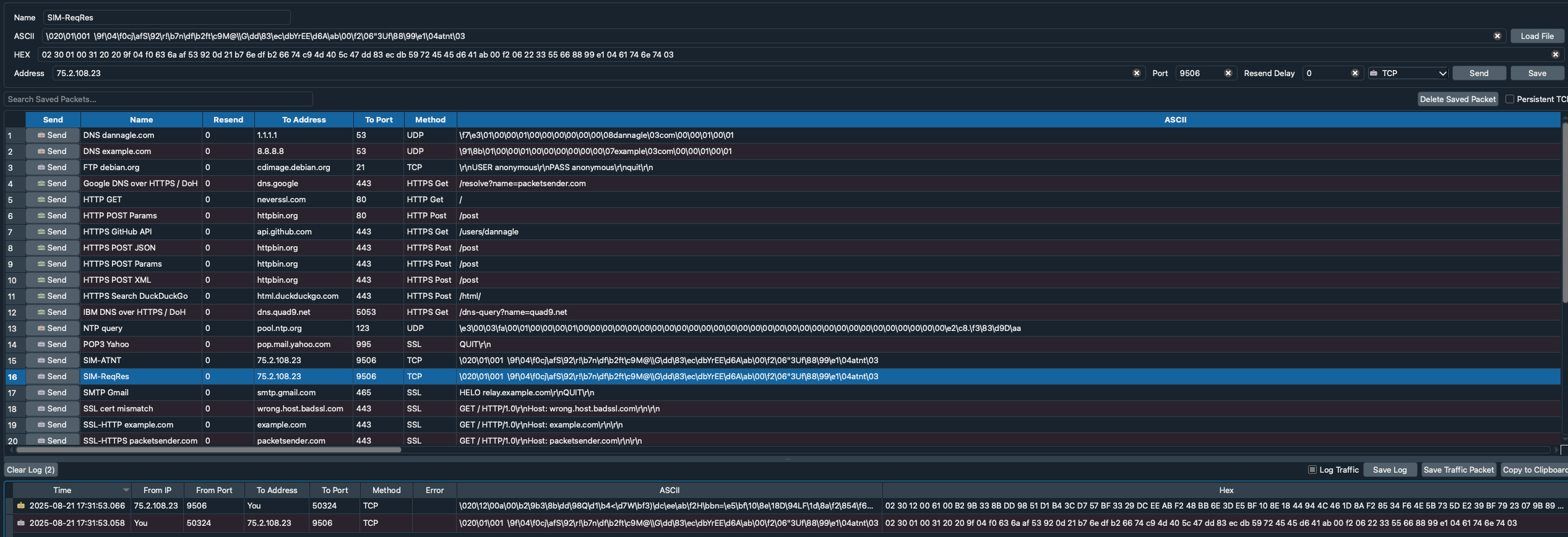

Example:¶
In this example, the Packet Sender tool is used to send a hex packet to the SIM service endpoint (AWS Global Accelerator IP).
